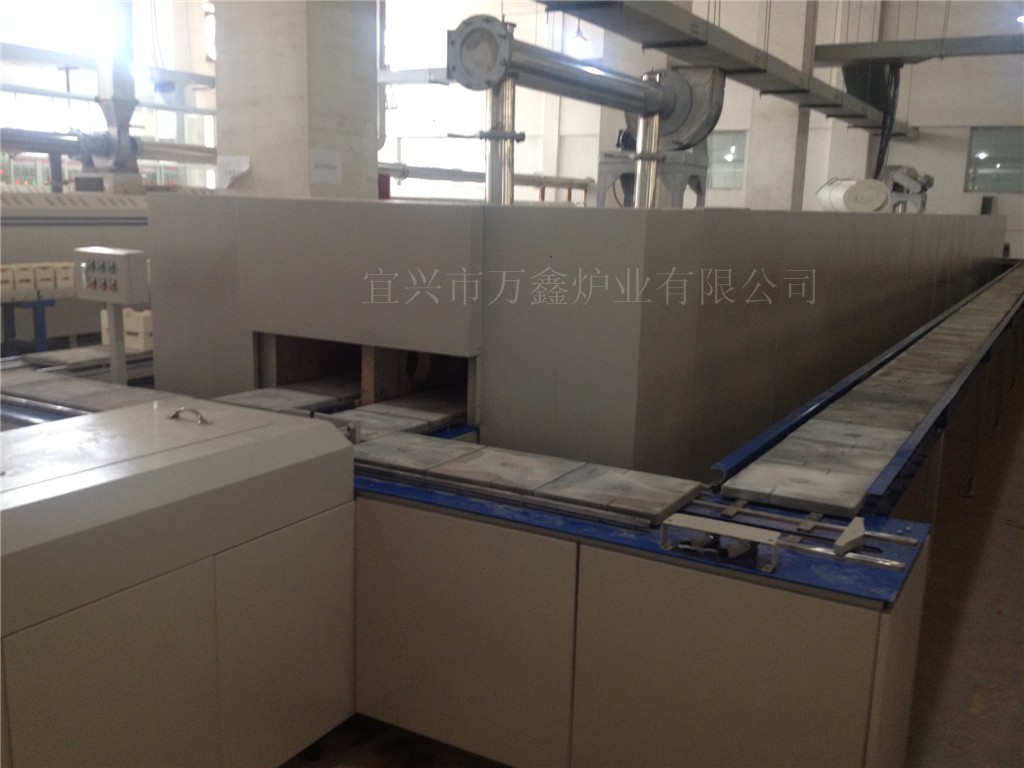

TZL全自动系列双孔双推板隧道式电阻炉
 点击数:7213次 添加时间:2014/7/10 [关闭] [收藏]







 TZL automatic series double hole double push plate tunnel resistance furnace

用途:PTC粉料、稀土、陶瓷制品、热敏陶瓷元件、磁性材料、氧化铝、电子陶瓷等的煅烧。



特点:双孔双回转比2条单孔窑更节能(在产量相等的情况下)。



同向:对于产品的工艺没有限制,产量大。



逆向:比同向更节能(利用了一孔出料端的余热对另一孔的进料端加热),但是对产品工艺曲线图要求  比较高(工艺曲线只能比较平稳)。



使用温度:100℃—1400℃



Usage: the calcination of PTC, rare earth, ceramics, thermal ceramic components, magnetic materials, aluminum oxide, electronic ceramics and other products.

Features: double holes double circumgyration rate, 2 single kilns are more energy-saving (in the case of equal output).

Same directional: there is no limit to the process of the product with big yield. Reverse direction: it has more energy efficient than in the same direction (uses the waste heat from the discharge end of hole to heat the feed end of the other hole), but it has a relatively high require on the process graphs of product (process graphs must be relatively stable).

Operate temperature: 100 ℃~1400 ℃

主要技术参数The main technical parameters

型号

Type

   炉膛尺寸

Furnace Size

(L×W×H)mm

   设备尺寸

Equipment Size

(L×W×H)mm

装机功率

 (KW)

Installed Power

控温组数

Number of

Temperature

Control Group

(Temperature Area

(温区)

常用工作温度

Common

Operating   Temperature

(℃)

加热元件

Heating

Element

TZL-100-13

9000×250×180×2孔

12000×2000×1650

   100

  3

   1300

硅碳棒

Silicon Carbide

TZL-150-13

12000×400×155×2孔

15000×1600×2000

   150

  8

   1300

硅碳棒

Silicon Carbide

TZL-160-13

13000×400×290×2孔

17000×2100×1700

   160

  6

   1300

硅碳棒

Silicon Carbide

TZL-200-13

18000×320×180×2孔

21000×1500×2000

   200

  9

   1300

硅碳棒

Silicon Carbide

TZL-250-11

16000×440×250×2孔

20000×3800×1600

   250

  8

   1100

电阻丝

Resistance Wire



可根据用户要求进行特殊设计

It can be specially designed according to users’ requirements
