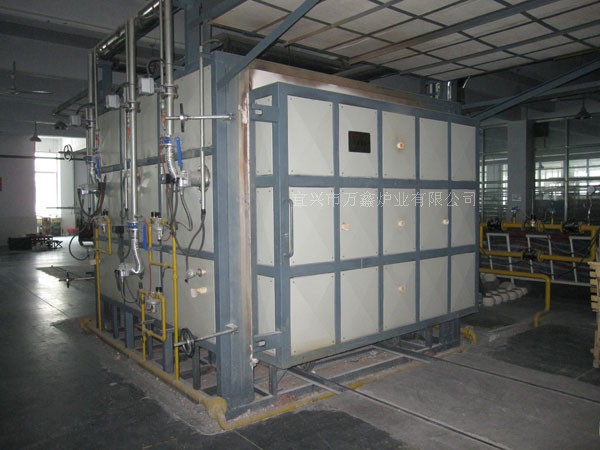

GWO系列梭式窑
 点击数:2552次 添加时间:2014/6/23 [关闭] [收藏]

 GWO series shuttle kiln



用途:耐火材料,氧化铝陶瓷,磁性材料,各种陶瓷等的烧成。

Usage: the firing of refractory materials, alumina ceramics, magnetic materials, various ceramics.



特点:采用先进保温材料、高效节能,余热利用。

Features: use the advanced insulation materials, high efficient and energy saving, make full use of waste heat.



使用温度:100℃—1700℃

Operate temperature: 100 ℃~1700 ℃



可选:燃料(天然气、煤气、石油)。

Optional: fuels (natural gas, coal, oil)



主要技术参数

The main technical parameters

型号

Type

最高工作温度

The Maximum Operating Temperature

  (℃)

炉温稳定度

Furnace Temperature Stability Degree

(<±℃)

有效容积

Effective Volume

(m³)

有效尺寸

Effective Size

(L×W×L)mm

GWO-05

1700

3

0.5

950×640×830

GWO-10

1700

5

1.0

1150×850×1000

GWO-15

1700

6

1.2

1800×850×1000

GWO-20

1700

8

2.0

1900×960×1100

GWO-40

1700

10

4.0

2300×1300×1350

GWO-50

1700

12

5.0

2850×1300×1350



可根据客户要求设计定做
